Understanding Network Packet Capture: How to Improve Network Security and Visibility

Network of information flowing

When it comes to understanding what's truly happening on your network, one solution stands head and shoulders above the others. Whether you're investigating a security incident, troubleshooting performance issues, or conducting network forensics, packet capture gives you the complete picture.

What Is Network Packet Capture?

Network packet capture is the process of intercepting and recording data packets as they travel across your network. Every packet contains three main components:

Header information: Source and destination addresses, port numbers, protocols
Control information: Data for managing the packet's journey
Payload: The data that one device sends to another across the network

Unlike other monitoring methods that only provide summaries or statistics, network packet capture gives you access to every bit of information passing through your network. This includes complete header details and full payload contents, allowing you to see exactly what's happening on your network in real-time or for forensic analysis later.

The captured packets are generally stored in standardized formats such as .pcap (packet capture) or .pcapng (packet capture next generation), making them compatible with various analysis tools. These capture files serve as a comprehensive record of network activity.

How Does Network Packet Capture Work?

Network packet capture operates through a multi-step process that intercepts, copies, and analyzes data as it moves through your network:

1. Interception: First, a packet capture solution must be positioned at a strategic point in the network where it can access the data flow. This is typically accomplished using either:

Network TAPs (Test Access Points) which create exact copies of traffic between two points
SPAN/Mirror ports which instruct network switches to send copies of traffic to monitoring ports

2. Collection & Copying: The packet capture system creates exact duplicates of each packet without disrupting the original data flow. In professional deployments, this is done using specialized hardware like Network Critical's TAPs that ensure zero packet loss and maintain network performance.

3. Timestamp Application: Each packet is marked with precise timing information, critical for accurate sequencing and analysis, especially in security investigations where the order of events matters.

4. Storage: Captured packets are written to storage media in standardized formats like PCAP. Modern solutions like SmartNA-PortPlus™ can store weeks or months of traffic data, allowing for historical analysis.

5. Filtering & Processing: Due to the massive volume of data on enterprise networks, intelligent filtering is often applied to focus on relevant traffic, reducing storage requirements while maintaining visibility into critical data flows.

6. Analysis: Finally, the captured packets are examined using specialized software that can decode protocols, reconstruct sessions, identify anomalies, and present the data in human-readable format.

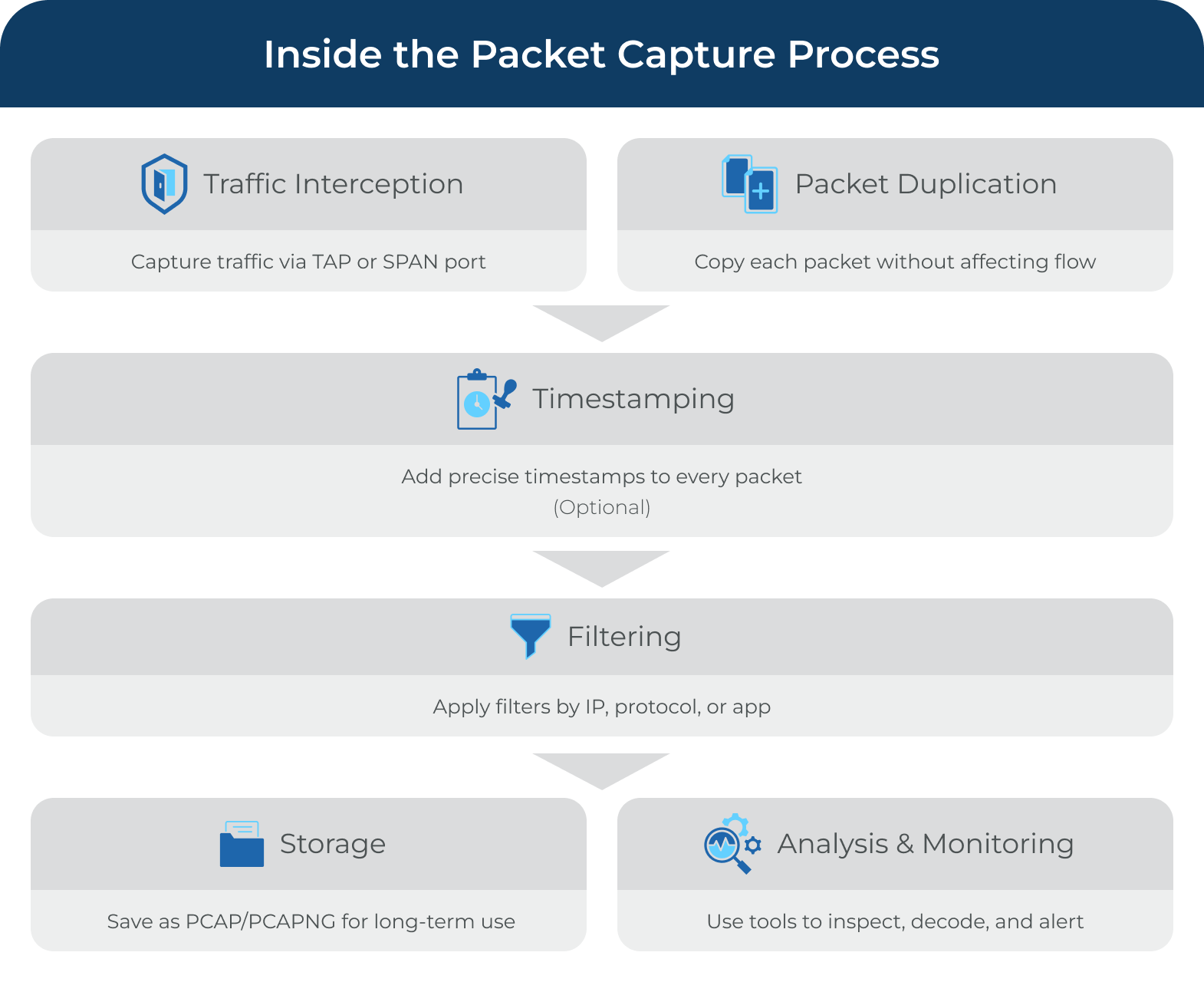

Inside the Packet Capture Process

Why Network Packet Capture is Important

The value of network packet capture extends across multiple domains of network management.

Security Monitoring and Incident Response

When a network security alert triggers, having packet captures available enables your security team to:

Verify if an attack occurred or if it was a false positive
Determine how an attacker gained access
Identify which systems were compromised
Understand what data has been exfiltrated
Establish a detailed timeline of events

Network Troubleshooting

When your network experiences performance issues or outages, packet capture reveals:

If packets are being dropped
Latency issues between network components
Protocol errors or misconfigurations
Application-level problems
Bandwidth utilization issues

Regulatory Compliance

Many industries have strict compliance requirements for network monitoring and data protection. Network packet capture helps you:

Provide evidence for audits
Demonstrate security controls are functioning correctly
Investigate potential data breaches thoroughly
Document network activity for compliance reports

Network Packet Capture Techniques

Successfully implementing packet capture relies on selecting the right approach for your environment. Here are the primary techniques used for network packet capture:

TAP-Based Capture

A network Test Access Point (TAP) is a hardware device specifically designed for packet capture. Network TAPs are inserted into network links to create an exact copy of traffic flowing through the connection.

Advantages:

Captures 100% of packets with zero packet loss
Completely passive with no impact on network performance
Provides full duplex capture (both directions simultaneously)
Remains functional during network failures

SPAN/Mirror Port Capture

Switched port analyzer (SPAN) ports, also known as mirror ports, are configured on network switches to copy traffic to a monitoring port where capture tools can be connected.

Advantages:

Lower initial cost, as they use existing switch infrastructure
More flexible to reconfigure than physical TAPs
Easier to deploy across multiple network segments

Limitations:

May drop packets during high traffic volumes
Introduces additional load on the switch
Can miss certain types of traffic, such as errors or malformed packets

Network Packet Broker Integration

For enterprise environments, network packet brokers (NPBs) provide advanced traffic management capabilities for optimizing your packet capture deployment:

Aggregate traffic from multiple TAPs or SPAN ports
Filter traffic to focus on specific protocols, addresses, or applications
Load balance traffic across multiple capture appliances
Remove duplicate packets to optimize storage efficiency

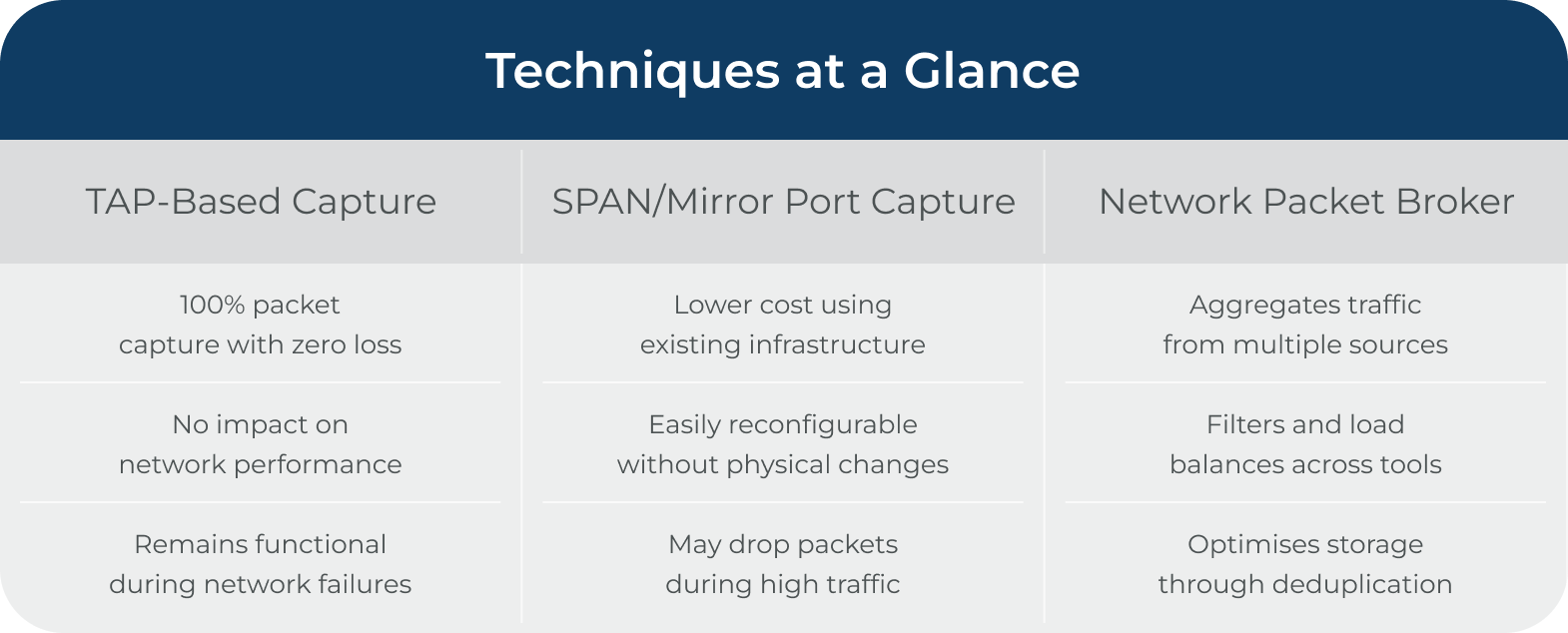

Techniques at a glance

How to Use Network Packet Capture Tools Effectively

Having the right capture infrastructure is only half the equation. To maximize the value of your packet capture investment, follow these best practices.

Strategically Position Capture Points

Place your packet capture points at critical network boundaries, such as:

Internet gateways
Data center ingress/egress points
Between security zones
At key application server connections

Implement Continuous Capture

Rather than capturing packets only when issues arise, implement continuous "always-on" packet capture with a rolling buffer. This ensures you have the packet data you need when an incident occurs, rather than scrambling to set up capture after the fact.

Modern packet capture solutions, such as SmartNA-PortPlus™, can store weeks or months of traffic data.

Use Intelligent Filtering

While capturing everything provides the most complete picture, it's not always practical due to storage constraints. Use filtering to focus on the most relevant traffic:

Filter out high-volume, low-value traffic (like streaming media)
Capture only headers for encrypted traffic where payload isn't accessible
Focus on critical application protocols
Implement intelligent traffic slicing that preserves important protocol elements

Integrate with Security and Monitoring Tools

Maximize the value of your packet capture by integrating it with other security and monitoring systems:

Connect packet capture to SIEM platforms for rapid investigation of alerts
Link network performance tools to packet data for deep-dive analysis
Enable automated capture based on security alerts
Use packet data to verify findings from other monitoring systems

Advancing Visibility with Network Packet Capture

Network packet capture delivers irrefutable evidence of every transaction, every communication, and every potential threat traversing your infrastructure. This level of visibility transforms how you secure, troubleshoot, and optimize your network – turning guesswork into certainty and suspicion into actionable insight.
